89

HACHIKYU SHIKI KEBADATE HIZUMASEKI
dualoscillo fuzz

The "Hachikyu Shiki Kebadate Hizumaseki - DUALOSCILLO FUZZ" (89) is a fuzz distortion pedal with two internal oscillation systems.

Characterised by variety of fuzz and oscillation sounds.

It has two individual fuzz circuits which create the wide variety of thick tones and oscillating beats by use of two internal oscillating signals.

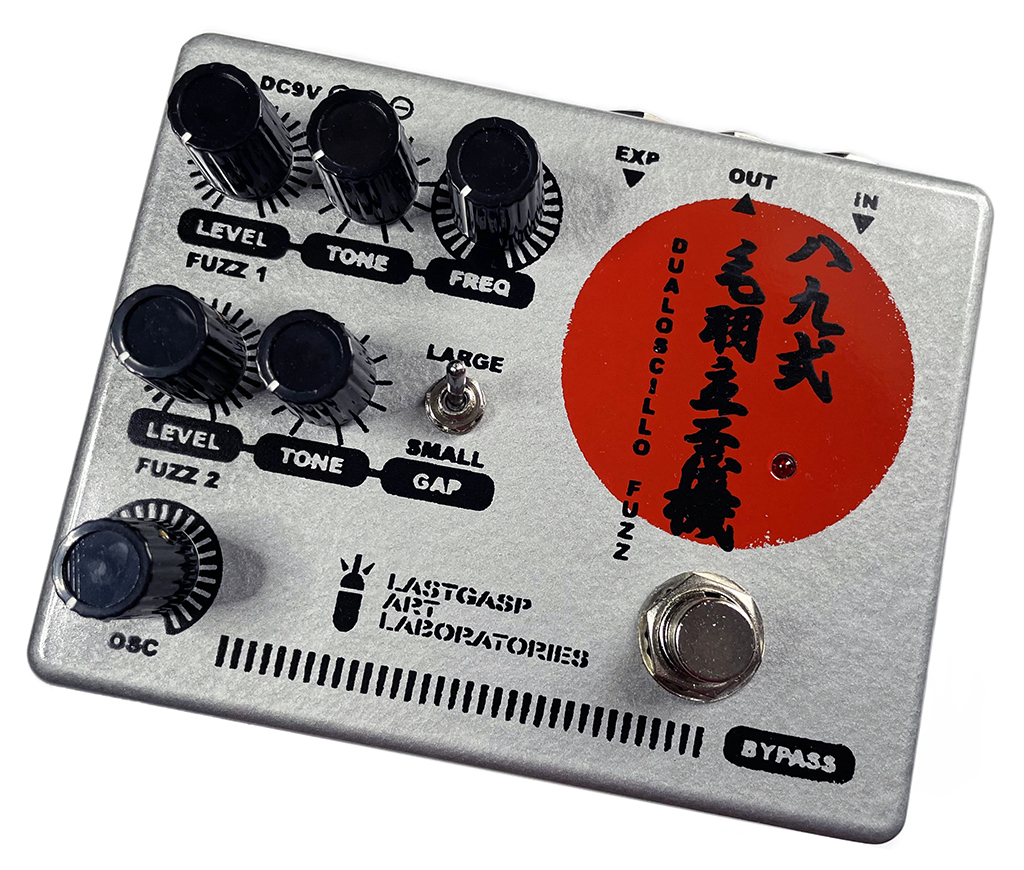

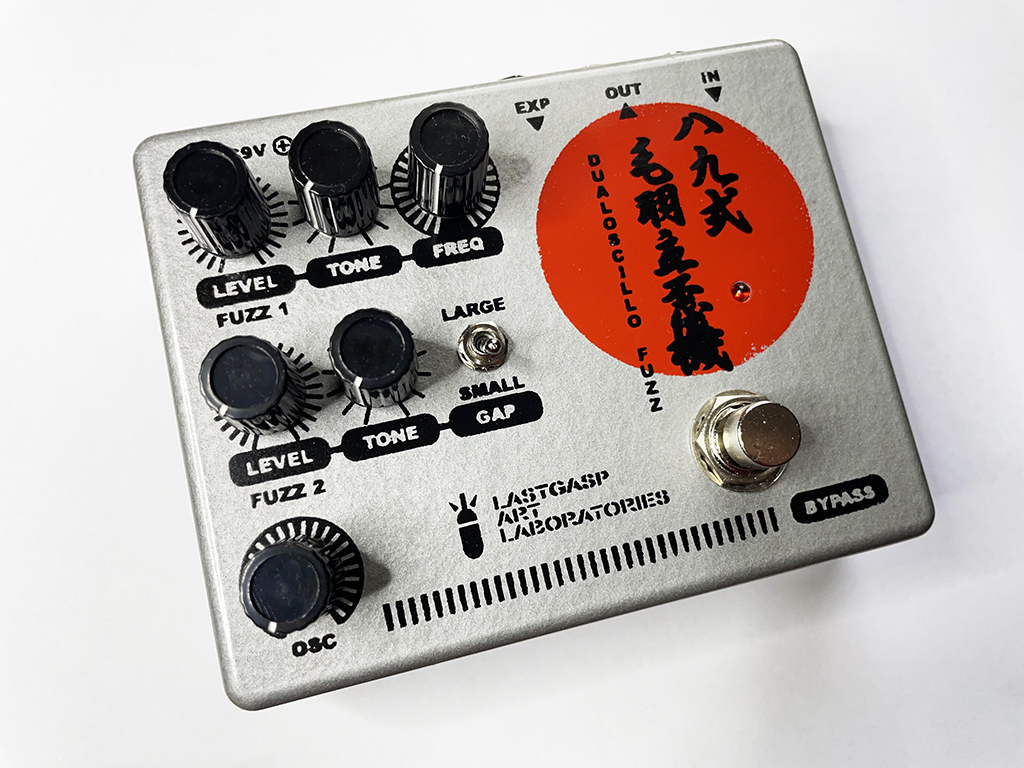

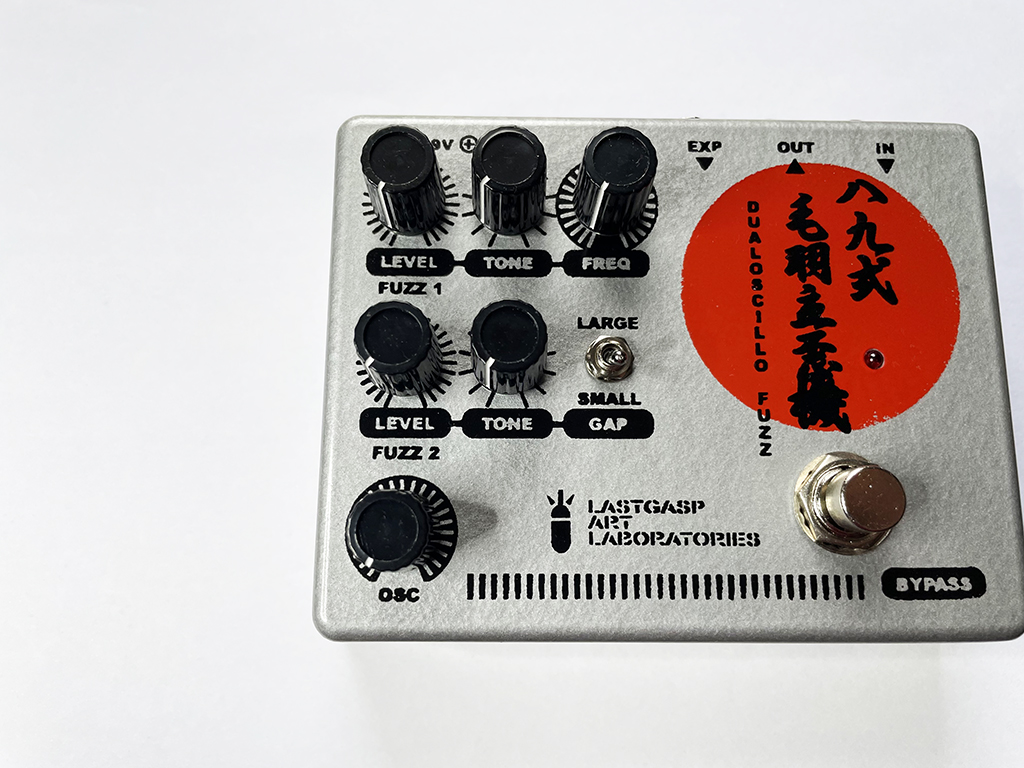

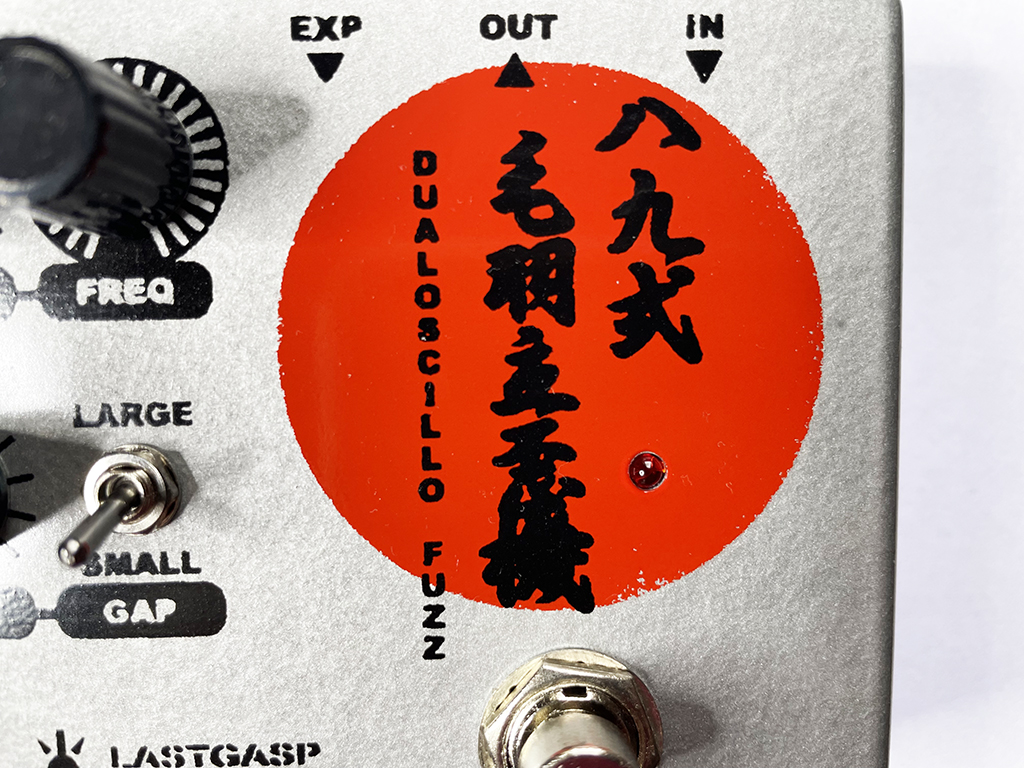

		The top three knobs control FUZZ 1 (LEVEL, TONE, FREQ). The second row controls FUZZ 2 (LEVEL, TONE) and the GAP switch (small, large) controls the clarity of the oscillation pitch between FUZZ 1 and FUZZ 2. The OSC knob controls the oscillation pitch of FUZZ 1 and FUZZ 2.

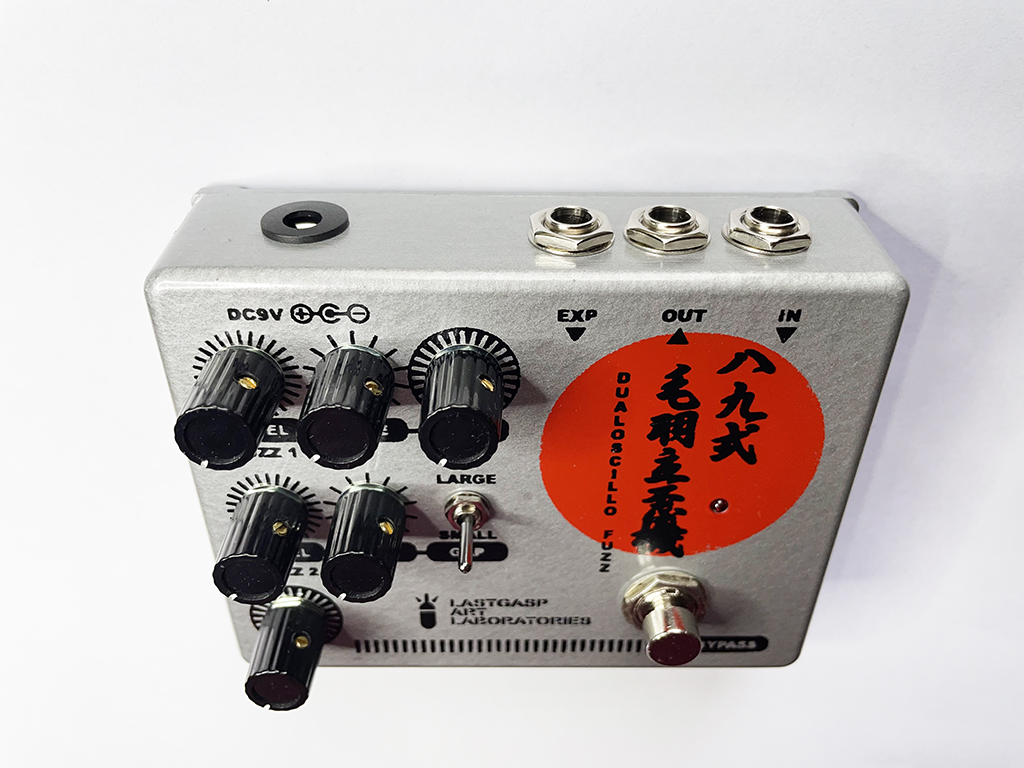

		The top side of the pedal has 3 jacks for EXP, OUTPUT, INPUT and an AC ADAPTER. For the exp pedal any 10k ohm expression pedal will work to control the OSC (the "Roland EV-5" is our recommendation).
		The 89 features two 88 - Super Oscillo Fuzz circuits, mixing both oscillators internally to create an endless variety of rich and thick fuzz sounds.
		The oscillating sounds can be modulated or harmonized by the variety of setting. The 89 is specifically characterized by the oscillating sound. It also creates variety of fuzzes without oscillation.

SIZE	L:120mm W:90mm H:60mm
WEIGHT	300g
JACKS	INPUT, OUTPUT, EXP
SWITCHES	ON/OFF, GAP
CONTROLS	FUZZ1 (LEVEL, TONE, FREQ), FUZZ2 (LEVEL, TONE), OSC
POWER	BATTERY 006P or AC adapter (DC9V "barrel" type tip negative)

The specification may be changed without further notice.
