CYBER PSYCHIC
parametric oscillo filter


open price
buy it now at LAL STORE





The "CYBER PSYCHIC parametric oscillo filter" (CP) is a parametric filter pedal with it's own internal oscillation system.

The parametric filter is a filter effect that changes the tone by passing only the signal of specific frequency bands, thus cutting the signal of other frequency bands.

It creates sounds by mixing the input signal with oscillation sounds. These oscillating sounds are created by a combination of three self-generated oscillating systems within the pedal.

It can filter softly, or make chaotic noise with it's self generated oscillation. The "CP parametric oscillo filter" is a filter with an added touch!




Its a reconstructed parametric filter that can add new dimensions to (rather than subtract from) your sound. It could also be called a synthesizer with it's oscillation features.

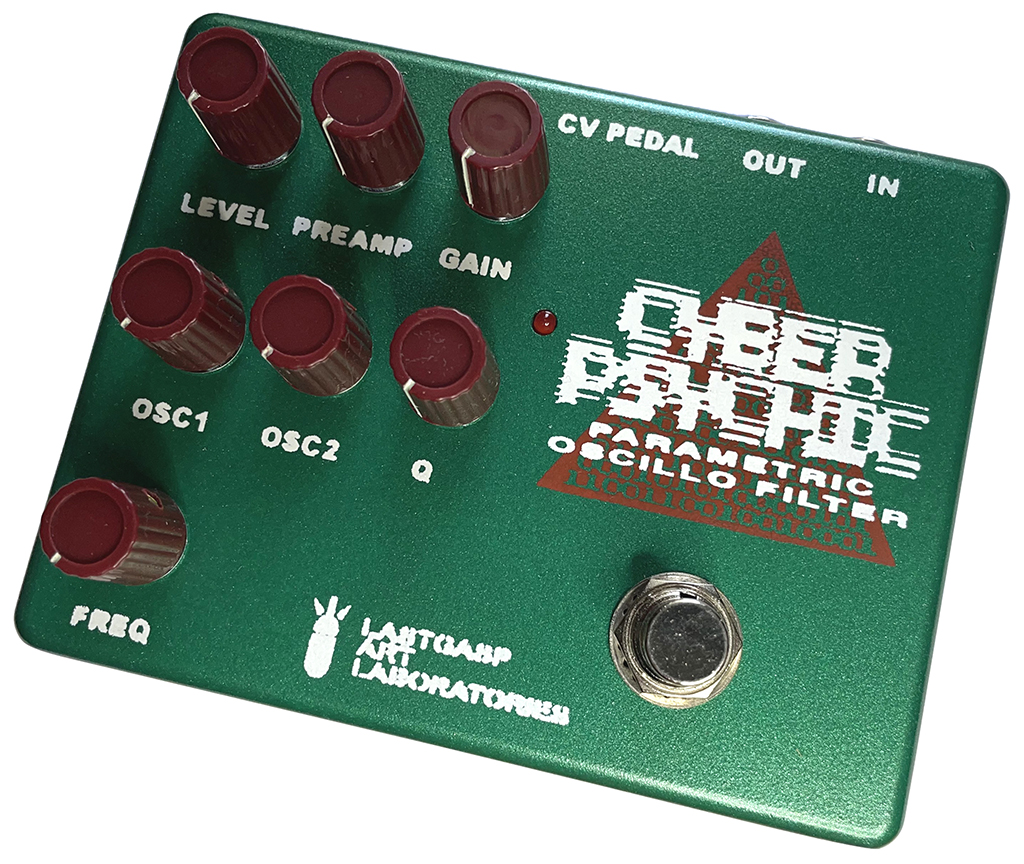

Controls from top of left side:

LEVEL - Controls the output level
PREAMP - Controls the input level
GAIN - Controls the gain level
OSC1 - Controls the pulse oscillation sound
OSC2 - Controls the oscillation sound
Q - Controls the resonance of the filter/the oscillation sound
FREQ - Controls the center of the frequency

*There is the possibility that sudden, strong and unexpected oscillation will occur during the operation of this pedal. Be ready to control the LEVEL at any time.




GAIN controls the overall gain level, it makes a distortion sound and controls the sensitivity of the oscillation.
The resonance becomes sharp when Q is turned to the right. At it's sharpest point it will begin oscillating. *Turn the OSC1, the OSC2 and the Q slowly, as it tends to begin oscillating suddenly.




On the top side, there are jacks for an INPUT, an OUTPUT, a CV PEDAL and an AC ADAPTER. The CV PEDAL jack can be connected to a CV pedal for "FREQ" alterations. If you have a foot CV pedal, you can control the "FREQ" with your foot. The "CV pedal" (Control Voltage pedal) is also known as an "expression pedal". Unfortunately, we do not manufacture these pedals yet. Some manufacturers make "expression pedals" and almost all of them can be used in combinations with our pedals, but effects will vary depending on the manufacturer. We recommend using the MOOGERFOOGER "EP-1" for the "CP parametric oscillo filter".





SIZE L:120mm W:90mm H:60mm
WEIGHT 300g
JACKS INPUT, OUTPUT
SWITCHES ON/OFF
CONTROLS LEVEL, PREAMP, GAIN, OSC1, OSC2, Q, FREQ
POWER BATTERY 006P or AC adapter(DC9V "barrel" type tip negative)

The specification may be changed without further notice.
